MICRSafe - Mag Stripe Workflow

The application supports the Card Present transactions by using MICRSafe device.

The user can do a Magnetic Swipe using this terminal.

Before performing the transactions the user has to add the MICRSafe terminal to the application on the Terminal Management page.

Once the terminal is added and connected to the computer, the device will light up with Green light as below:

MICRSafe

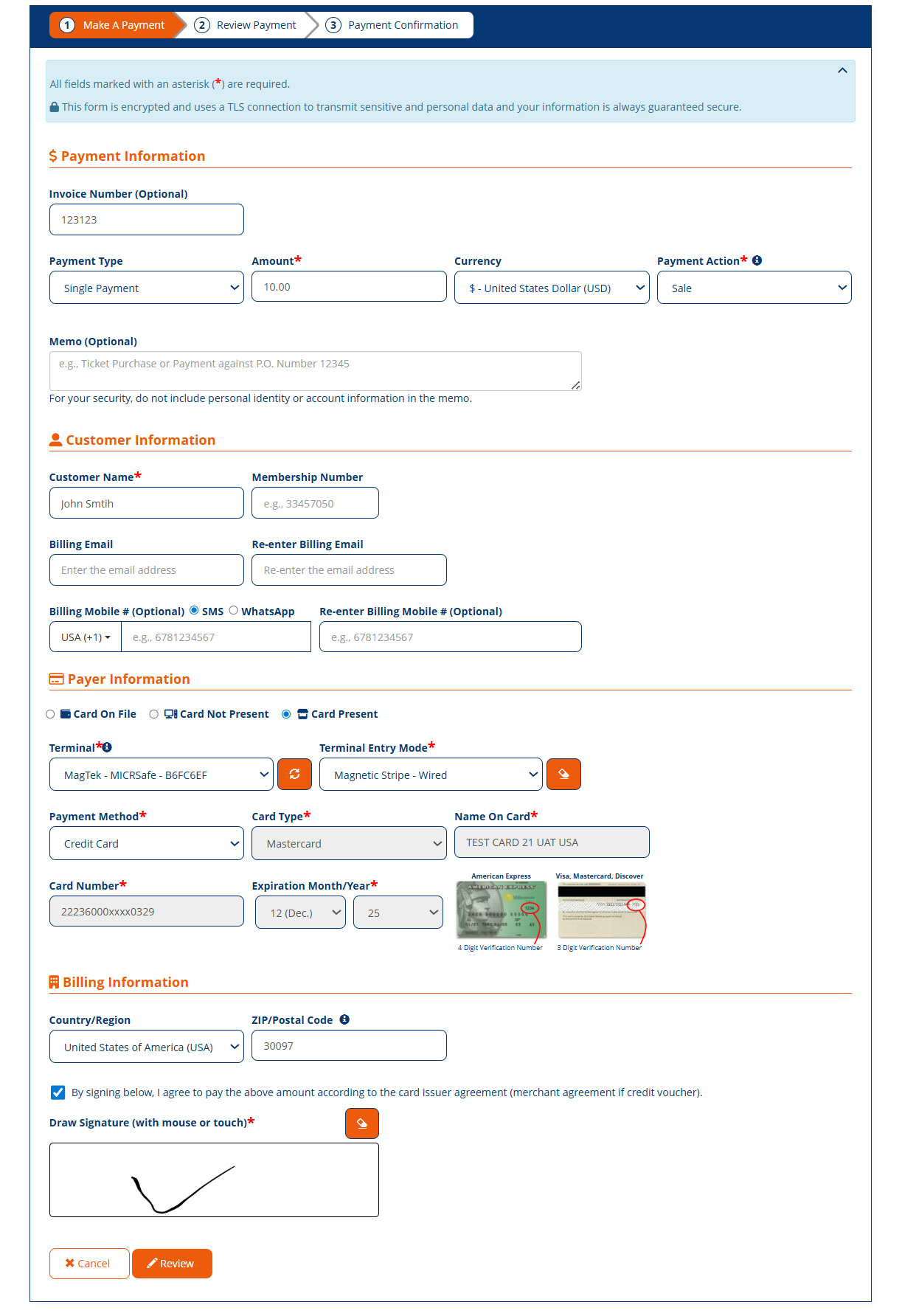

On the Make A Payment page, Select Card Present radio button and the MICRSafe terminal from the Terminal drop-down list.

MICRSafe

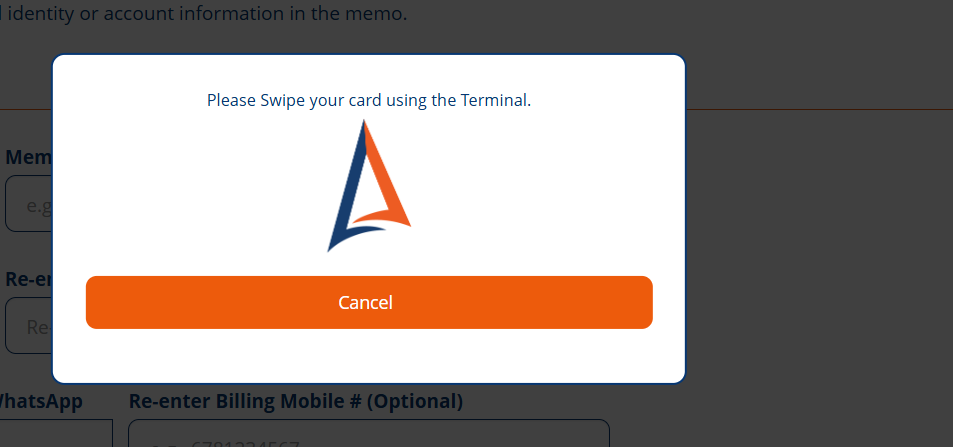

Select the Terminal Entry Mode as Magnetic Stripe - Wired. The user is prompted with a popup which says Please Swipe your card using the Terminal

MICRSafe

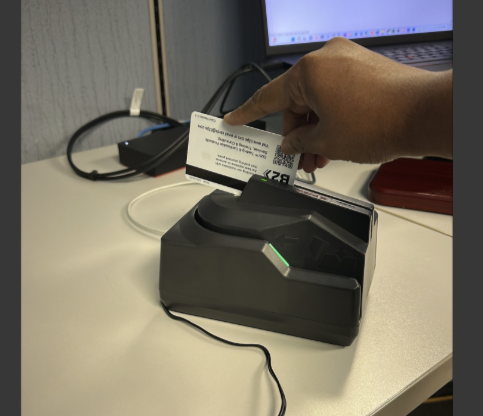

The User has to swipe the card using the terminal.

MICRSafe

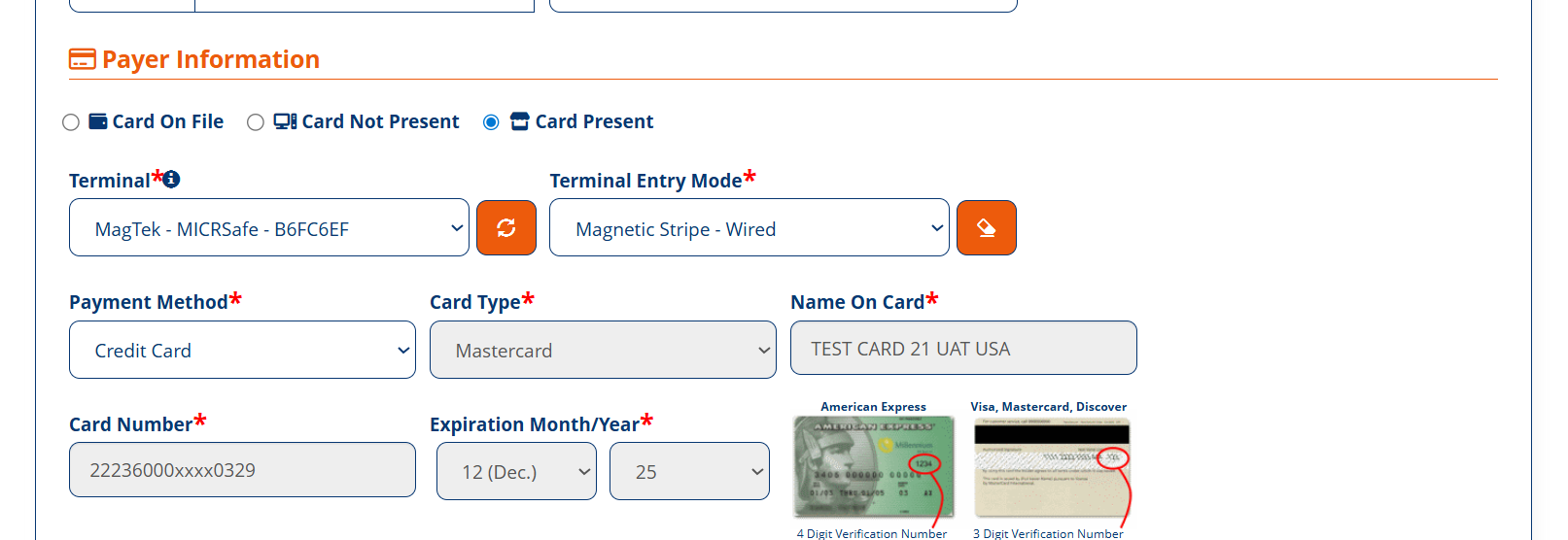

Once the user swipes the card, on the Make A Payment page all these card details gets captured and auto-filled.

MICRSafe

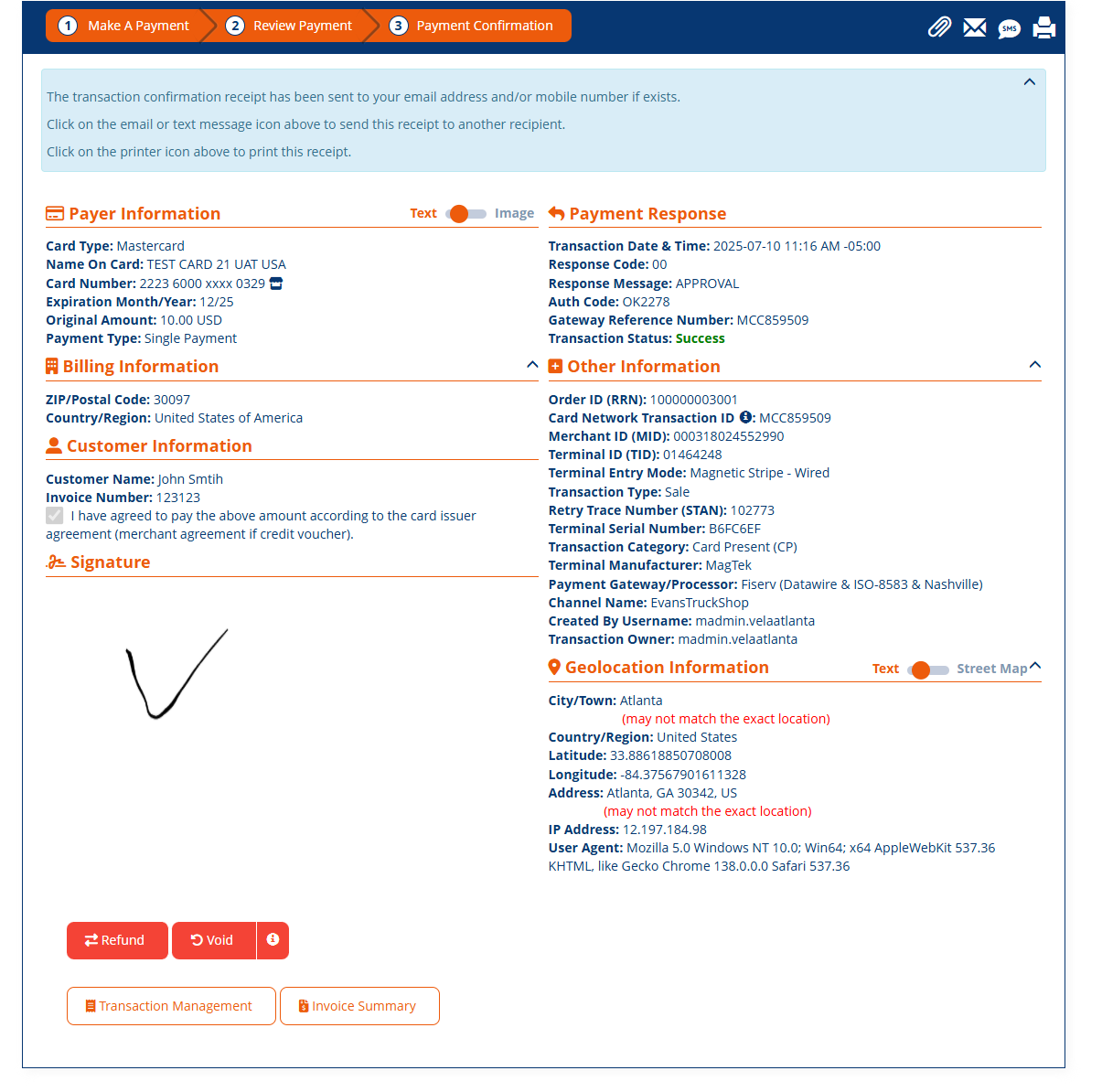

After filling in all the required fields, the user has to click on the Review button and on the Confirm button on the Review Payment page to complete the payment.

MICRSafe

MICRSafe

Updated As Of Version 6.7.x
